Shantui original track chain assembly identification method

2019-04-18

Shantui original track chain assembly identification method

Shantui original track chain assembly identification methods mainly have the following points:
First, the chain track section head

The right-hand head looks from left to right: Shantui logo (1 digit) + pitch code (5 digits: 4 digits + 1 capital letter) + right section symbol (R) + mold number furnace number ( 4 digits: 1 uppercase English alphabet + 3 digits)



The left section head reads from right to left: mountain push logo (1 digit) + pitch code (5 digits: 4 digits + 1 capital letter alphabet) + left section symbol (L) + stove number mold number ( 4 digits: 2 digits + 1 uppercase English alphabet letter + 1 digit)


2

Shantui's chain link section is dominated by the top, such as SD16 dry chain, SD22 chain, SD32 chain and 190 series, 203 series, 216 series excavator chain.
Special case: SD16 wetland chain.
The right-hand head looks from left to right: Shantui logo (1 digit) + 203MA + right section symbol (R) + furnace number (2 digits: 2 digits)
3

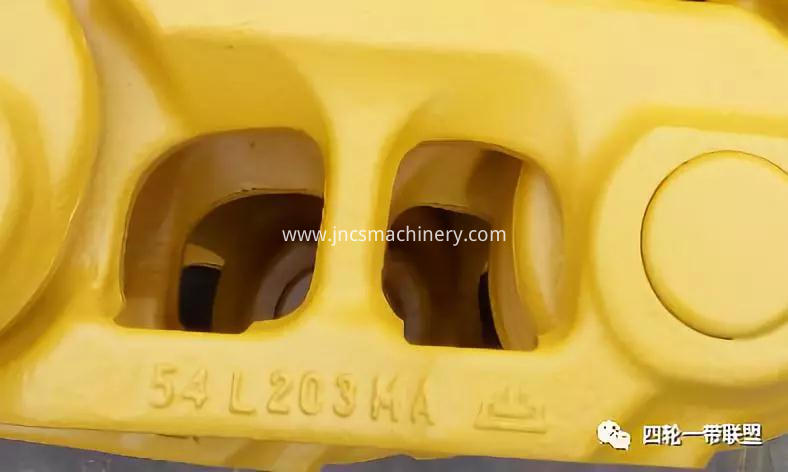

The left section head reads from right to left: Shantui logo (1 digit) + 203MA + left section symbol (L) + stove number (2 digits: 2 digits)
4
Another mountain push 160 Bulldozer chain was modified in 2016 (excluding the lubrication chain), the dry chain used all 203MJ chain links, and the wet chain used 203MMA chain. If there is a wetland chain using a 203MJ link section is definitely a fake.
Second, the chain identification code

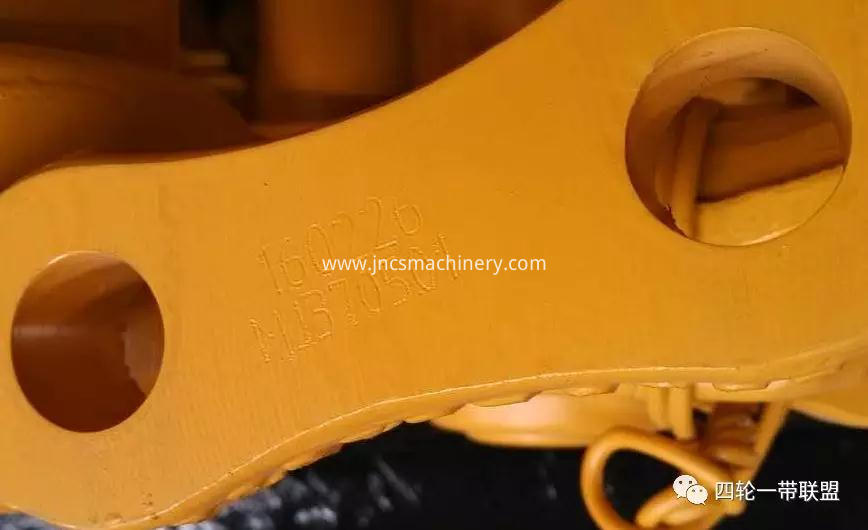

In the middle of the left-end bolt mounting surface of each chain, an identification code is printed on the printer, including product information and production information. This information can be traced on the production ledger of the Shantui crawler chassis. Inquire.
5
Third, the pin
The common pin of the mountain push chain is a continuous production line through the heat treatment equipment, and there is no central hole at both ends of the pin shaft, and the heat treatment process is all in the Shantui crawler factory;
The main pin shaft is made of thimble scanning heat treatment equipment because of the production equipment. Both ends have a central hole, and the heat treatment process is carried out in the external cooperation factory of Shantui.

Fourth, the inspection label on the last pin sleeve

Inspection labels are attached to the pin sleeves at the end of each chain, including product information, production information, and inspection conformity marks.

6



Five, the post-market QR code label

There are two two-dimensional codes on the QR code label of the post-market. The above two-dimensional code can query the product information (the Shantui internal system can find the attribution of the product); the following QR code can check whether the product is For the original product.

7
